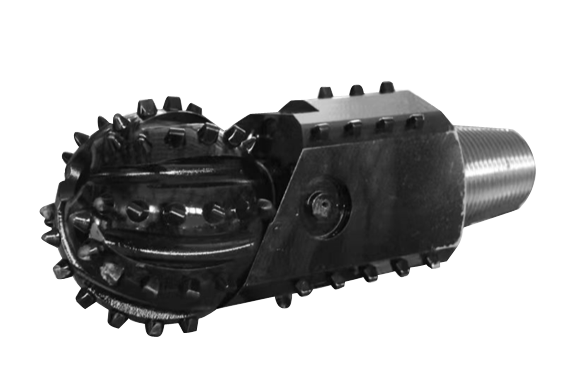

Certification System You are here: Products > Tricon Bits > Single cone bit > 6 5/64 517G
| Product Specification | |
| Type specification（inch）： | 6 5/64 |
| Type specification（mm）： | 154.4 |
| IADC： | LYD517 |
| Additional features： | G |
| Formation： | Soft stratum with high permeability,Low compressive strength |
| Drilling condition： | rotary drilling、high temp.drilling、deep drilling、motor drilling |
| Bearing Type： | journal bearing |
| Total teeth count： | 75 |
| API connection(REG pin)： | 3 1/2 REG |
| Weight on bit(KN)： | 0.25-0.64 |
| Rotary speed(Rpm)： | 160-60 |
| Recommened upper torqueKN.M： | 9.6-12.4 |
