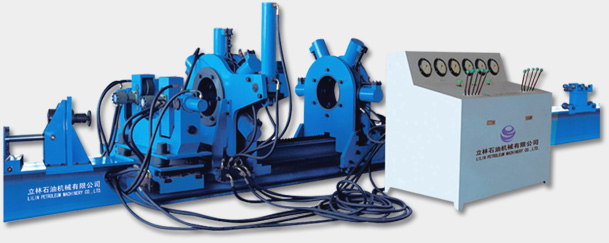

Lilin hydraulic breakout unit is a multifunctional auxiliary equipment with hydraulic pressure, transmission and automation. It is widely used to dismantle, assemble and maintain all kinds of strings and downhole drilling tools of petroleum drilling and geological exploration. Lilin hydraulic breakout unit with advanced technology, perfect operation function, simple and practicable running program, strict processing technology and reasonable design structure can dismantle and assemble all kinds of threads with different diameter and different working pressure. Its console is controlled by hydraulic pressure.To directly read the valves of pressures and torques, and to synchronously spin-up, clamp and move.
Parameters of small hydraulic breakout unit |
Parameters of medium hydraulic breakout unit |
Parameters of large hydraulic breakout unit |
||||
| Prarmeter | English system | Metric system | English system | Metric system | English system | Metric system |
| Pipe diameter | 1-1/4'' to 5-3/25'' | 32mm to 130mm | 2-3/8'' to 11-2/5'' | 60 mm to 290mm | 2-3/8'' to 17-1/2'' | 60mm to 450mm |
| Maxiumu make up/break out torque | 8850 ft-lbs | 12KN·m | 84818 ft-lbs | 80KN·m/100KN·m | 132758 ft-lbs | 150KN·m/180KN·m |
| Base length | 19ft | 5800 mm | 59 ft | 18000 mm | 59 ft | 18000 mm |
| Maximum spin-up torque | 2950 ft-lbs | 14KN·m | 2950 ft-lbs | 4.0KN·m | 2950 ft-lbs | 4.0KN·m |
| Maximum thrust of the puller | 0.36 tons | 3.6KN | 25 tons | 246 KN | 28 tons | 280 KN |
| Maximum pull of the puller | 0.30 tons | 3 KN | 20 tons | 180 KN | 24 tons | 243 KN |
| Host machine type | 7.2'×4.9'×28.7' | 8.76×2.2×1.5m | 5.57'×5.57'×59' | 1.7×1.7×18 m | 7.2'×7.2'×59' | 2.2×2.2×18 m |
| Net weight | 5521 lbs | 2500 kg | 17637 lbs | 8000 kg | 28219 lbs | 12800 kg |
